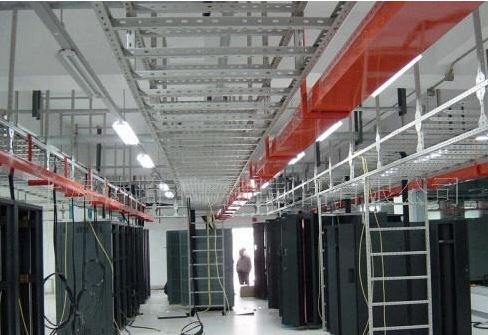

不銹鋼電纜橋架作為電力傳輸系統的重要載體，其散熱性能直接影響電纜載流量與運行。在工程設計階段，精確計算橋架散熱能力是優化系統配置、預防熱失效的關鍵。本文將從熱力學原理出發，系統解析不銹鋼電纜橋架散熱計算方法。

　　Stainless steel cable trays, as important carriers of power transmission systems, have a direct impact on cable current carrying capacity and operational safety due to their heat dissipation performance. In the engineering design phase, accurately calculating the heat dissipation capacity of the bridge is the key to optimizing system configuration and preventing thermal failure. This article will systematically analyze the heat dissipation calculation method of stainless steel cable trays based on thermodynamic principles.

　　一、散熱機理與傳熱路徑

　　1、 Heat dissipation mechanism and heat transfer path

　　不銹鋼電纜橋架散熱主要通過三種方式實現：

　　The heat dissipation of stainless steel cable trays is mainly achieved through three methods:

　　熱傳導：電纜產生的熱量經絕緣層傳遞橋架本體，某材料實驗室的測試數據顯示，交聯聚乙烯電纜的導熱系數為0.35W/(m·K)，不銹鋼橋架的導熱系數則達15W/(m·K)，形成熱傳導通道。

　　Thermal conduction: The heat generated by the cable is transferred to the bridge body through the insulation layer. Test data from a certain material laboratory shows that the thermal conductivity of cross-linked polyethylene cable is 0.35W/(m · K), while that of stainless steel bridge is 15W/(m · K), forming an efficient thermal conduction channel.

　　熱對流：空氣流經橋架表面時帶走熱量，自然對流換熱系數通常為5-10W/(m2·K)，強制通風條件下可提升20-50W/(m2·K)。

　　Thermal convection: When air flows over the surface of the bridge, it carries away heat. The natural convection heat transfer coefficient is usually 5-10W/(m2 · K), which can be increased to 20-50W/(m2 · K) under forced ventilation conditions.

　　熱輻射：橋架表面向環境發射紅外線，某光學檢測設備的測量表明，拋光不銹鋼表面發射率約為0.15，遠低于氧化表面，輻射散熱效率存在顯著差異。

　　Thermal radiation: The surface of the bridge emits infrared radiation into the environment. Measurements from an optical detection device show that the emissivity of polished stainless steel surfaces is about 0.15, much lower than that of oxidized surfaces, and there is a significant difference in radiation heat dissipation efficiency.

　　二、散熱計算核心公式

　　2、 Core formula for heat dissipation calculation

　　穩態散熱模型

　　Steady-state heat dissipation model

　　基于能量守恒定律，橋架散熱量Q可表示為：

　　Based on the law of conservation of energy, the heat dissipation Q of the bridge can be expressed as:

　　Q = K×A×ΔT

　　其中，K為綜合傳熱系數，A為有效散熱面積，ΔT為橋架表面與環境溫差。某電力設計院的工程手冊，當橋架間距大于100mm時，K值取8-12W/(m2·K)。

　　Among them, K is the comprehensive heat transfer coefficient, A is the effective heat dissipation area, and Δ T is the temperature difference between the bridge surface and the environment. The engineering manual of a certain power design institute recommends that when the spacing between cable trays is greater than 100mm, the K value should be taken as 8-12W/(m2 · K).

　　電纜載流量修正

　　Correction of cable current carrying capacity

　　環境溫度升高會導致電纜載流量下降，修正公式為：

　　An increase in ambient temperature can lead to a decrease in cable current carrying capacity. The correction formula is:

　　I修正 = I基準×√[(θm - θa)/(θm - θ0)]

　　I correction=I benchmark × √ [(θ m - θ a)/(θ m - θ 0)]

　　式中，θm為電纜允許溫度，θa為實際環境溫度，θ0為基準溫度。某電纜廠商的測試數據顯示，當環境溫度從25℃升40℃時，相同截面積電纜的載流量下降約18%。

　　In the formula, θ m is the maximum allowable temperature of the cable, θ a is the actual ambient temperature, and θ 0 is the reference temperature. According to test data from a cable manufacturer, when the ambient temperature rises from 25 ℃ to 40 ℃, the current carrying capacity of cables with the same cross-sectional area decreases by about 18%.

　　橋架溫升計算

　　Calculation of Bridge Temperature Rise

　　對于多層電纜橋架，溫升Δτ可采用下式估算：

　　For multi-layer cable trays, the temperature rise Δ τ can be estimated using the following formula:

　　Δτ = (I2×R)/(N×A×h)

　　Δ τ=(I2 × R)/(N × A × h)

　　其中，I為電流有效值，R為電纜單位長度電阻，N為電纜根數，A為橋架截面積，h為表面?zhèn)鳠嵯禂?shù)。某仿真軟件的計算結果表明，當橋架填充率超過40%時，溫升速率呈指數增長。

　　Among them, I is the effective current value, R is the resistance per unit length of the cable, N is the number of cables, A is the cross-sectional area of the bridge, and h is the surface heat transfer coefficient. The calculation results of a certain simulation software show that when the bridge filling rate exceeds 40%, the temperature rise rate increases exponentially.

　　三、關鍵影響因素解析

　　3、 Analysis of key influencing factors

　　橋架結構參數

　　Bridge structure parameters

　　截面形狀：梯級式橋架通風性能優于槽式橋架，某風洞試驗顯示，相同尺寸下梯級式橋架的自然對流換熱系數提高。

　　Section shape: The ventilation performance of the stepped bridge is better than that of the trough bridge. A wind tunnel test showed that the natural convection heat transfer coefficient of the stepped bridge is improved under the same size.

　　安裝間距：層間垂直間距每增加50mm，綜合散熱效率提升約8%。

　　Installation spacing: For every 50mm increase in vertical spacing between layers, the overall heat dissipation efficiency is improved by about 8%.

　　表面處理：噴塑處理橋架較拋光橋架表面溫度降低，因涂層發射率提高增強了輻射散熱。

　　Surface treatment: Spraying treatment reduces the surface temperature of the bridge compared to polishing, and enhances radiation heat dissipation due to the increased emissivity of the coating.

　　環境條件

　　Environmental conditions

　　環境溫度：IEC 60287標準規定，基準環境溫度取40℃，每升高1℃，電纜載流量需修正。

　　Environmental temperature: According to the IEC 60287 standard, the reference environmental temperature is set at 40 ℃. For every 1 ℃ increase, the cable current carrying capacity needs to be adjusted.

　　海拔高度：海拔每升高1000m，空氣密度下降，對流換熱系數降低約10%。

　　Altitude: For every 1000m increase in altitude, the air density decreases and the convective heat transfer coefficient decreases by about 10%.

　　日照強度：露天橋架需考慮太陽輻射，某氣象站的監測數據顯示，夏季正午太陽輻射強度可達1000W/m2。

　　Sunshine intensity: Outdoor cable trays need to consider solar radiation. Monitoring data from a certain meteorological station shows that the solar radiation intensity at noon in summer can reach 1000W/m2.

　　電纜配置方式

　　Cable configuration method

　　填充率：橋架填充率應控制在30%-50%，某火災實驗室的試驗表明，填充率超過60%時，緊急情況下的熱釋放速率增加。

　　Filling rate: The filling rate of the bridge should be controlled between 30% and 50%. A test conducted in a fire laboratory showed that when the filling rate exceeds 60%, the heat release rate in emergency situations increases.

　　排列方式：三角形排列較水平排列散熱效率高，因形成自然煙囪效應。

　　Arrangement method: Triangular arrangement has higher heat dissipation efficiency than horizontal arrangement due to the formation of natural chimney effect.

　　不銹鋼電纜橋架散熱計算是涉及多物理場耦合的復雜工程問題。通過建立精確的熱平衡模型，綜合考慮結構參數、環境條件與電纜配置，可實現散熱性能的量化評估。在實際工程中，應優先采用仿真工具進行方案比選，結合智能監測技術構建預防性維護體系。隨著導熱材料與數字孿生技術的發展，橋架散熱設計正朝著更精準、更智能的方向演進，這對保障電力系統運行具有重要意義。

　　The heat dissipation calculation of stainless steel cable trays is a complex engineering problem involving the coupling of multiple physical fields. By establishing an accurate thermal balance model, taking into account structural parameters, environmental conditions, and cable configuration, a quantitative evaluation of heat dissipation performance can be achieved. In practical engineering, simulation tools should be prioritized for scheme comparison, combined with intelligent monitoring technology to construct a preventive maintenance system. With the development of thermal conductive materials and digital twin technology, bridge heat dissipation design is evolving towards more precise and intelligent directions, which is of great significance for ensuring the safe operation of power systems.
