在我們使用橋架的過程中，根據其安裝的場合不同，其采用的接地方式也是不一樣的，那么您知道分別采用的什么樣的接地方法嗎？下面我們?yōu)槟硐嚓P(guān)內容。
In the process of using the cable tray, the grounding methods are different according to the different installation occasions. Do you know what grounding methods are used? Now let's organize the relevant content for you.
在我們使用橋架的過程中，根據其安裝的場合不同，其采用的接地方式也是不一樣的，那么您知道分別采用的什么樣的接地方法嗎？
In the process of using the cable tray, the grounding methods are different according to the different installation occasions. Do you know what grounding methods are used?
橋架可能存在的安裝場合以及如何接地的情況有以下三種：
There are three possible installation occasions and grounding methods for cable tray:
1、當允許利用橋架系統構成接地干線回路時，橋架端部之間連接電阻應不大于0.00033歐姆 ，接地孔應絕緣涂層。在1KV及以下中性點直接接地系統中，受電設備的接地與系統中性線接地相連。
1. When the cable tray system is allowed to form the grounding trunk circuit, the connection resistance between cable tray ends shall not be greater than 0.00033 ohms, and the insulation coating shall be removed from the grounding hole. In the neutral point direct grounding system of 1KV and below, the grounding of the receiving equipment is connected with the system neutral line grounding.
2、裝有處動切斷供電裝軒時，橋架的級長方向金屬橫截面積應不小于規定值。沿橋架全長另敷設接地干線時，每段（包括非直線 段）橋架應少有一點與接地干線可靠連接。
2. When equipped with automatic cut-off power supply device, the metal cross sectional area of the cable tray in the level direction shall not be less than the specified value. When the grounding main line is laid along the full length of the bridge, at least one point of each section (including the non straight line section) of the bridge shall be reliably connected with the grounding main line.

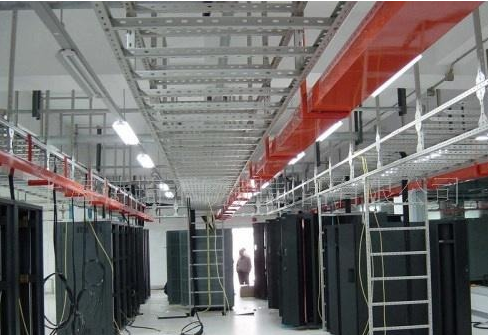

橋架安裝在不同場合如何接地
How to ground the cable tray in different occasions
3、對于振動場所，橋架不同的安裝場合的接地要點說明：在接地部位的連接處應裝置彈簧圈。
3. Key grounding points for vibration places and different installation occasions of bridge: spring coil shall be installed at the connection of grounding parts.
電纜橋架之間可利用連接板作為跨接線，把橋架連成一體。在連接板兩端的兩只連接螺栓上加鍍鋅彈簧墊圈，橋架之間用軟銅線進行跨接，再將橋架與接地線相連，形成電氣通路。橋架整體與接地干線應有不少于兩處的連接。接地作業完成后需要檢查驗收。
Connecting plates can be used as jumpers between cable trays to connect them into a whole. Galvanized spring washers are added to the two connecting bolts at both ends of the connecting plate. Soft copper wires are used for bridging between bridges, and then the bridge is connected with the grounding wire to form an electrical path. There shall be at least two connections between the whole bridge and the grounding trunk. Inspection and acceptance are required after the grounding operation is completed.
以上就是為大家介紹的有關山東電纜橋架的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.zrbg1.com
The above is a detailed introduction of Shandong cable tray for you. I hope it will be helpful to you. If you have any questions, please contact us. We will provide you with our attitude http://www.zrbg1.com
